Products

Nodel hardware, products and extensions.

Automatic supplies compact Nodel appliances built and tuned to run Nodel reliably, alongside reusable recipes, interfaces, deployment tooling and integration patterns for control-system projects.

Ask about products Understand Nodel
nodel online
Abstract Nodel node map used for productised extensions.

hardware

Current Nodel appliances.

Nodel Nano and Nodel Mini are configured for real deployment environments before supply. Automatic prepares each appliance with the operating system, Nodel runtime and project-specific setup needed to make it useful on site from day one.

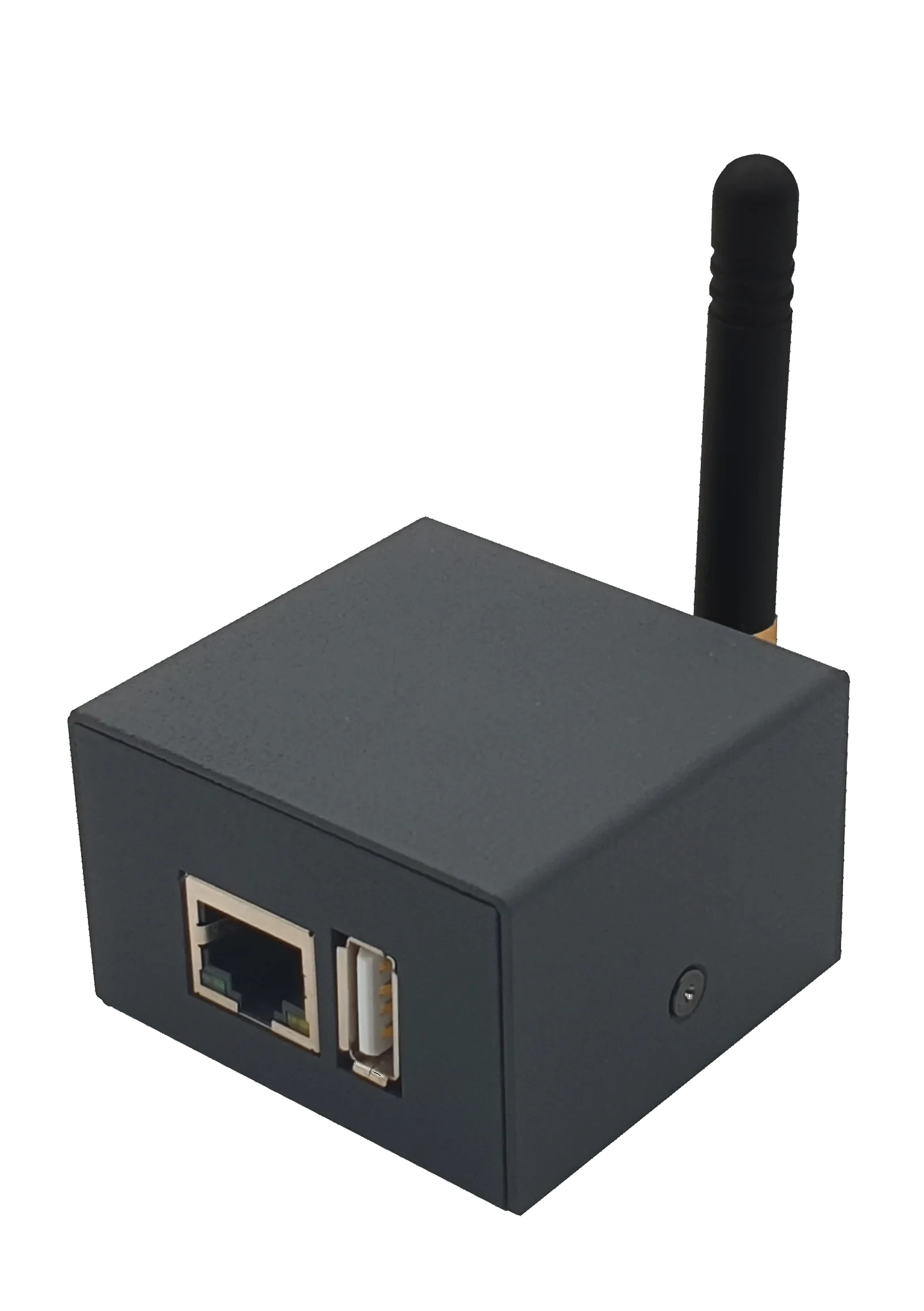

Nodel Nano compact chassis with antenna, Ethernet and USB connections.

Compact edge appliance

Nodel Nano

A compact Nodel endpoint that disappears into the install: PoE-powered, fanless and small enough to live wherever the control point needs to be. Preloaded with Debian and Nodel by Automatic, so it arrives ready to run.

PoE-powered and fanless for invisible placement
Preloaded with Debian and Nodel — deploys in minutes
Contact Automatic for deployment fit and availability

Technical profile

CPU
Quad-core Arm Cortex-A35 up to 1.0 GHz
Memory
512 MB DDR3
Storage
Onboard eMMC, preloaded with Debian and Nodel
Network
100 Mb Ethernet with PoE
I/O
USB 2.0 host, USB-C OTG and GPIO expansion
Request details Email Automatic

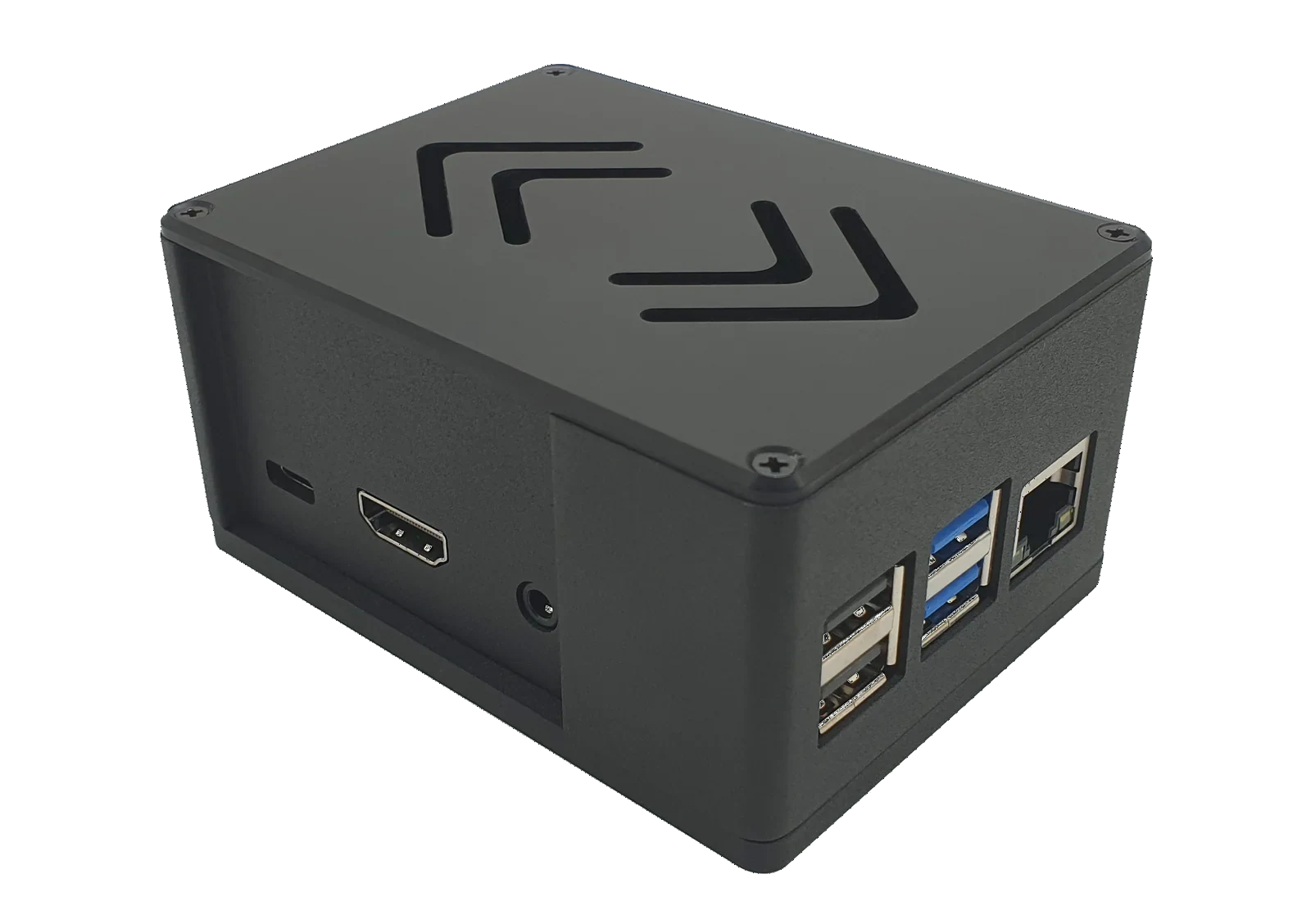

Nodel Mini chassis with HDMI, Ethernet and multiple USB connections.

Performance edge appliance

Nodel Mini

A dedicated Nodel appliance for roles that need headroom: more I/O, display output up to 8K, and room for richer local services. Preloaded with Debian and Nodel by Automatic, so it arrives ready to run.

Drives displays and heavier local workloads
Preloaded with Debian and Nodel — deploys in minutes
Contact Automatic for deployment fit and availability

Technical profile

CPU
Arm Cortex-A76 performance-core configurations
Memory
8 GB or 16 GB LPDDR4x
Storage
Onboard eMMC, preloaded with Debian and Nodel
Display
HDMI output up to 8K plus MIPI DSI support
Network
Gigabit Ethernet with PoE
Wireless
Wi-Fi 6 and Bluetooth 5.4
I/O
USB 3.0, USB 2.0, microSD, eMMC, camera and GPIO expansion
Request details Email Automatic

Availability: appliances are prepared to order — contact Automatic for deployment fit and lead times.

extensions

Productised Nodel building blocks.

Recipes

Reusable device, service and workflow behaviour for Nodel deployments.

Control interfaces

Browser-based operator views designed around real room operation.

Deployment tooling

Repeatable setup patterns that reduce manual error and support effort.

Integration adapters

Bridges between Nodel, devices, APIs and third-party systems.

Monitoring views

Focused status panels for technical teams and first-response workflows.

current path

Productised, not generic.

Automatic's product work starts from repeated Nodel project needs: the appliance that makes deployment easier, the recipe that keeps being rebuilt, the control interface operators ask for, the deployment task that should not depend on memory, or the status view that makes support faster. Hardware and modules are prepared through direct consultation so they can match the environment they are going into.

engage

Need Nodel hardware or a reusable module?

We can help choose the right appliance, configure it for your environment, or turn project-specific patterns into maintainable tools.

Discuss product work support@automatic.com.au
